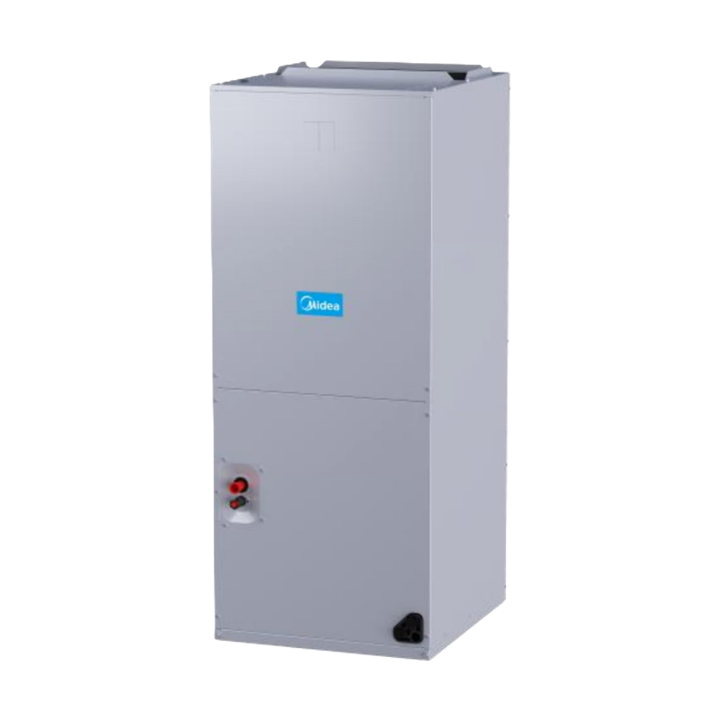

Midea TXV Air Handler – 4 Ton

Equipment purchase console Available to order

Midea TXV Air Handler – 4 Ton

Price range: $1,299.00 through $1,519.00

BrandMidea Tonnage4 Ton Model / SKUMVMP48C1MN10TA

Compact unit design simplifies installation and maintenance procedures. Compatible with traditional air handler configurations utilizing standard ducting methods. Supports vertical upflow, horizontal-right, and horizontal-left installations.

Configure this equipment Select every required option to confirm the exact configuration and price.
Confirm equipment compatibilityCall (214) 892-3586 before ordering if you need help matching the published specifications.
Secure online checkoutAvailable payment options are shown at checkout after the configuration is complete.
Contact product support
SKU: MVMP48C1MN10TA Category:

Description



Standard Features

  • High heat-transfer efficiency and low static-pressure drop A-shaped coil.
  • Foil-faced insulation to prevent energy loss through the cabinet.
  • Factory-sealed cabinet certified to achieve ≤2% air leakage rate at 1.0-inch water column.
  • Multi-stage blower speed control to align with varying capacity demands.
  • 4-position installation: Upflow, Horizontal Right, Downflow, Horizontal Left.
  • Horizontal and vertical condensate drain pans (standard); primary and secondary condensate fittings.
  • Field-installed electric heater kits (5/7.5/10/15/20 kW) available as accessories. Multiple electrical entry locations.
  • Dual front panel with slide-track volute coil.
  • TXV with threaded connections for simplified maintenance.
  • Tool-free access integrated filter rack.
  • Easy-to-braze copper evaporator connections.
  • TXV designed for convenient piston replacement.
  • All-aluminum heat exchanger enhances product longevity.
  • Advanced internal welding reduces corrosion potential.
  • AHRI and ETL certified.
  • Polymer condensate pan with UVC inhibitor.
  • Fully insulated cabinet design R454B refrigerant sensor ensures safe operation.



Product Specifications

  • Condenser Coil: Tube & Fin
  • EVAPORATOR COIL: Aluminum-Hydrophilic Aluminum
  • Efficiency: Up to 15.2 SEER2
  • Fan Motor: PSC
  • Voltage: 208/230V-1Ph
  • Sound Power: 65-73 dB(A)
  • Throttle value: Piston



Specification Sheet Download

Technical Manual_Midea_MVMP-AL-R454B_20260520_V2

Additional information

Electric Heat Kit

None, 10KW Electric Heat Kit, 15KW Electric Heat Kit, 20KW Electric Heat Kit
Brand

Tonnage
